LOW PRESSSURE SOLENOID VALVE

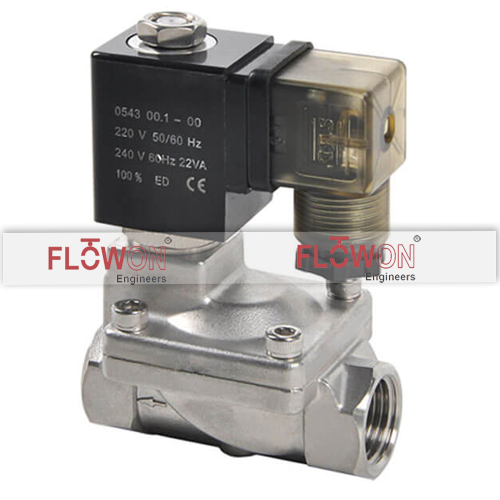

“FLOW-ON” offers semi-pilot high performance 2/2 way diaphragm type solenoid valve for HIGH VOLUME and LOW PRESSURE application in AIR GAS, Water, Light Oil, Corrosive fluid etc. available in Normally Close and Normally Open design. Our every valve is manufactured as per the design of our expert professionals. They made using superior grade material and advance machinery as per industrial norms and standards.

Our Products are highly appreciated by our clients because of their compact design, precise dimension, corrosion resistance, and zero leakage and user-friendly interface. Our these valves are mostly used in liquid and gas circuits. Some of the applications of these valves include swimming pools, irrigation system, heating system, industrial automation, sprinkler system etc



Size Range : 1/2″ To 2.5″ Screwed / Flanged

Technical Specification

Body & Cover

ASTM A351 Gr. CF8 / CF8M / CF3M

Seals / Diaphragm

Nitrile / Neoprene ( Silicon, Viton etc on Request)

Pressure Range

0 to 6 Bar

IP 20 (IS 2147) Solenoid coil

For General Purpose

IP 65 (IS 2147) Solenoid coil

For Waterproof Application

Group (IS / IEC 60079-1) Solenoid coil

For Explosion / Flameproof Application

Temperature Range

-50° C to 85° C Max (High Temperature on Request)

Coil Voltage

12V, 24V, 48V, 110V, 230V, AC/DC

Coil Insulation Coil Rating

Continuous Rated





















Dimensions

Size

S

(Screwed End)

F/F

(Flanged end)

D

D1

MM

Inch

6

¼”

65

128

78

8

10

3/8″

65

128

82

10

15

½”

65

128

90.5

15

20

¾”″

80

150

92

16.5

25

1″

104.5

160

98

19

32

1 ¼”

117

167

105

23

40

1 ½”

117

200

117

26.5

50

2″

136

230

124.5

33

65

2 ½”

172

230

130

38



All Dimensions are in (mm)



Applications:
Textile Processing Machinery, Chemical Plants, Water Treatment, Sugar Machinery, Cement Machinery, Pumps, Irrigation, Combustion Equipment, Heat Exchanger, Air Dryer, Pollution Controls, Laundry Equipments And Where Dependable ON/OFF Type Control is required.

HIGH PRESSSURE SOLENOID VALVE

“FLOW-ON” offers HIGH Flow diaphragm valve for Air, Water, Oil, Gas And Chemical. Our High Pressure solenoid valve is highly durable for an application that needs higher pressure control. Our quality brass body allows precise and fast machining, provides lower product cost as compared to another solenoid valve. Many industrial users appreciate the quality of high-pressure solenoid valve components.

These valves are designed for single cylinders for holding pressure. Provide smooth decompression before returning to cylinder ram. For reducing pressure drop, a large flow of oil return allows rams to return with low external force. For single cylinder operation, the valve can be connected in series. It can be used in different industrial application such as packaging equipment or in automotive process. This valve is a good choice for the different type of pressures and becomes a popular choice for conditions that require controlling high-pressure flow in a hazardous location.



Size Range : 1/2″ To 2.5″ Screwed / Flanged

Technical Specification

Body & Cover

ASTM A351 Gr. CF8 / CF8M / CF3M

Seals / Diaphragm

Nitrile / Neoprene (optional – silicon, viton & other) 0.5 to 10 bar

Pressure Range

-5° C to 85° C (On Request upto 95° C)

Temperature Range

12V, 24V, 48V, 110V, 230V, AC/DC

Coil Voltage

‘F’ & ‘H’ Class

Coil Insulation Coil Rating

Continuous Rated







Dimensions

Size

Flow Factor M3/hr

A

(Screwed End)

B

C

D

E

F

(Flanged End)

MM

Inch

6

¼”

2.5

65

128

170

56

130

10

3/8”

2.5

65

128

170

56

130

15

½”

3.5

65

128

170

56

44.5

130

20

¾”″

5

80

136

180

74

49.5

150

25

1″

11

95

152

200

80

54

160

32

1 ¼”

13

118

167

212

105

58.5

200

40

1 ½”

20

118

167

212

105

63.5

200

50

2″

38

137

190

234

120

76.5

230

65

2 ½”

67.6

172

230

298

143

89

290

80

3″

67.6

172

230

298

143

89

290

100

4″

67.6

172

230

298

143

89

290

                                                                                                                               All Dimensions are in (mm)





Applications:
Textile Processing Machinery, Chemical Plants, Water Treatment, Sugar Machinery, Cement Machinery, Pumps, Irrigation, Combustion Equipment, Heat Exchanger, Air Dryer, Pollution Controls, Laundry Equipments And Where Dependable ON/OFF Type Control is required.
